主要技术参数 |
SRC56NP---BC |
SRC62NP---BC |
|
最大用纸尺寸 |
560*400mm |
620*450mm |
|
Max.paper size |
560*400mm |
620*450mm |
|
最大印刷面积 |
550*375mm |
605*440mm |
|
Max.printing area |
550*375mm |
605*440mm |
|
用纸克重 |
40----250g/㎡ |
40----250g/㎡ |
|
Paper weight |
40----250g/㎡ |
40----250g/㎡ |
|
印刷速度 |
2000---7500张/小时 |
2000---7500张/小时 |
|
Printing speed |
2000---7500sheet/hour |
2000---7500sheet/hour |
|
印版尺寸 |
560*420*0.15mm |
620*485*0.15mm |
|
Plate size |
560*420*0.15mm |
620*485*0.15mm |
|
橡皮布尺寸 |
560*460*1.95mm |
616*505*1.95mm |
|
Blanket size |
560*460*1.95mm |
616*505*1.95mm |
|
靠版棍数量 |
三墨二水 |
三墨二水 |
|
Form roller quantity |
there inking,two water |
there inking,two water |
|
功率 |
1.65kw |
2.3kw |
|
Power |
1.65kw |
2.3kw |
|
电源 |
220v/50hz |
220v/50hz |
|
Supply |
220v/50hz |
220v/50hz |
|
机器重量 |
1200kg |
1400kg |
|
Machine weingt |
1200kg |
1400kg |
|
外型尺寸 |
2060*970*1340mm |
2250*1000*1360mm |
|
Overall dimensions |
2060*970*1340mm |
2250*1000*1360mm |

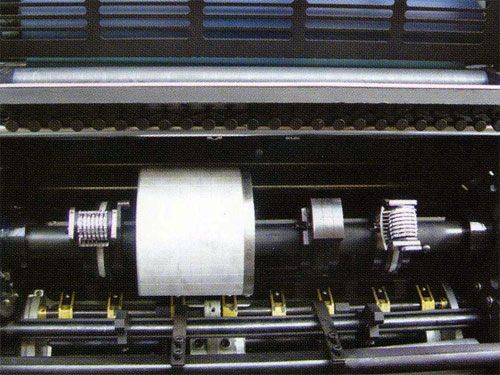

选配大的树脂座,可一次性完成印刷.打号码.压米线.套树脂印.
三墨两水的结构,加强传墨的均匀和饱满,
